Product type:Since the recovery fuse | recoverable fuse - Patch type self recovery fuse SMDPPTC

Name:SMD1210 placement self recover

Item:SMD1210

Description:

ELECTRICAL CHARACTERISTICS 電氣參數
SWESMD1210 Series 1210系列

Part Number						Maximum Time To Trip		Resistance			Agency Approval
Part Number	I hold (A)	Itrip (A)	Vmax (Vdc)	I max (A)	Pd max. (W)	Current (A)	Time (Sec.)	R min (Ω)	R typ (Ω)	R 1max (Ω)
SWESMD1210 P005TF	0.05	0.15	30	10	0.60	0.25	1.50	3.600	25.00	50.00	UL/CSA/TüV
SWESMD1210 P010TF	0.10	0.30	30	10	0.60	0.5	1.50	1.600	7.000	15.00	UL/CSA/TüV
SWESMD1210 P020TF	0.20	0.40	30	10	0.60	8.00	0.02	0.800	2.900	5.000	UL/CSA/TüV
SWESMD1210 P035TF	0.35	0.70	6	100	0.60	8.00	0.20	0.320	0.810	1.300	UL/CSA/TüV
SWESMD1210 P050TF	0.50	1.00	13.2	100	0.60	8.00	0.10	0.250	0.550	0.900	UL/CSA/TüV
SWESMD1210 P075TF	0.75	1.50	6	100	0.60	8.00	0.10	0.130	0.290	0.400	UL/CSA/TüV
SWESMD1210 P110TF	1.10	2.20	6	100	0.60	8.00	0.30	0.060	0.140	0.210	UL/CSA/TüV
SWESMD1210 P150TF	1.50	3.00	6	100	0.80	8.00	0.50	0.040	0.070	0.110	UL/CSA/TüV

Figure尺寸

Solder PAD Layouts
(Dimension in mm)

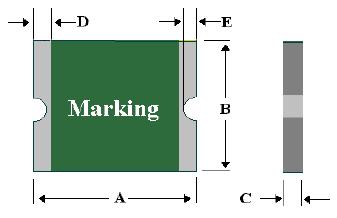

PHYSICAL DIMENSIONS (mm)尺寸圖
SWESMD1210 Series 1210系列

Part Number	A		B		C		D	E
Part Number	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Min.	Max.
SWESMD1210 P005TF	3.00	3.34	2.35	2.80	0.75	1.25	0.25	0.20	0.50
SWESMD1210 P010TF	3.00	3.34	2.35	2.80	0.75	1.25	0.25	0.20	0.50
SWESMD1210 P020TF	3.00	3.34	2.35	2.80	0.60	1.00	0.25	0.20	0.50
SWESMD1210 P035TF	3.00	3.34	2.35	2.80	0.50	0.85	0.25	0.20	0.50
SWESMD1210 P050TF	3.00	3.34	2.35	2.80	0.50	0.85	0.25	0.20	0.50
SWESMD1210 P075TF	3.00	3.34	2.35	2.80	0.50	0.85	0.25	0.20	0.50
SWESMD1210 P110TF	3.00	3.34	2.35	2.80	0.90	1.30	0.25	0.20	0.50
SWESMD1210 P150TF	3.00	3.34	2.35	2.80	0.80	1.80	0.25	0.20	0.50
